YY Loading Skid Series

Factory-Integrated Truck Loading & Skid-Mounted Systems

A loading skid integrates the batch controller, flow meter, control valves, piping, accessories, loading arm, interconnecting cables and cable trays onto one steel structure platform — leaving only process connections plus power and communication interfaces. Factory integration eliminates field cross-works, shortens schedules and guarantees quality. Every YOYI skid is custom-built and factory tested before shipment.

Truck Loading Skids

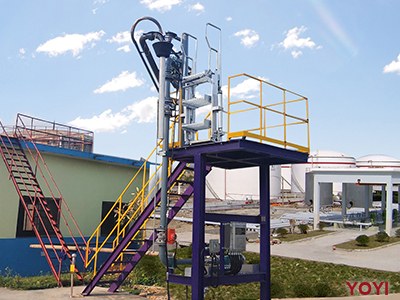

Top Loading Skid YY-T200

Simple-type top loading skid group for overhead tanker filling. Single-side skid, approx. 0.5–1 m w…

View Details →

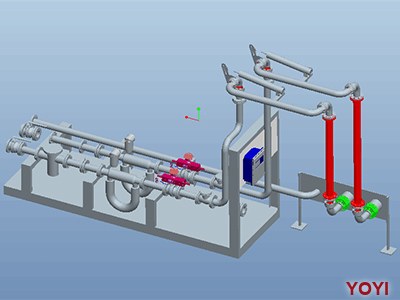

Bottom Loading Skid YY-B200

Closed bottom-loading skid group in two variants: a vapor/liquid two-phase closed skid for alkanes, hydrocarbo…

View Details →

Double-Side Loading Skid YY-D200

Compact, movable double-side skid integrating batch controller, flow meter, valves, piping, accessories, loadi…

View Details →

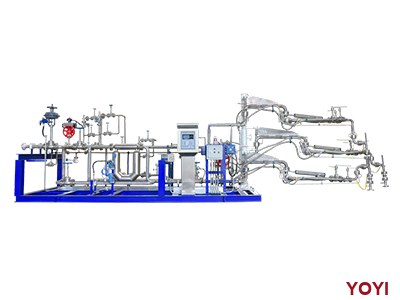

LNG Loading Skid YY-L200

Cryogenic loading skid for LNG: loading arm, flow meter, static alarm controller, pressure transmitter, loadin…

View Details →

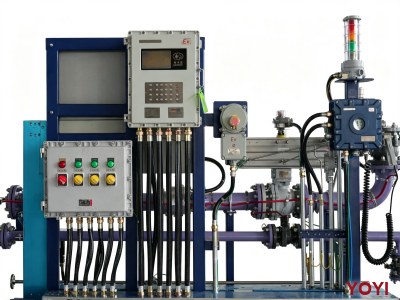

Compact Loading Skid YY-C200

For sites that already have a loading platform and frame: the automation equipment — batch controller, f…

View Details →

Sampling & Gas Supply Skids

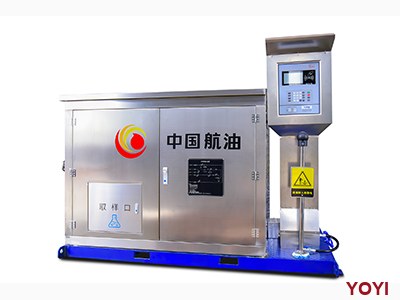

Three-Point Tank Sampling Skid YY-S300

Skid-mounted three-point sampling unit for vertical storage tanks, designed per GB/T 4756 and SH/T 0635. Upper…

View Details →

LNG Vaporization & Regulation Skid YY-V300

Integrates LNG ambient vaporizer, pressure regulator, safety valve, pressure gauges, flow meter (optional), IC…

View Details →

Skid-Mounted vs. Traditional Field Installation

Aspect	Field installation	YOYI loading skid
Installation	Many site procedures, poor protection of expensive instruments, long schedule	Entire unit integrated in the factory — no cross-works, guaranteed quality and stability
Commissioning	Uncertain instrument wiring and fitting issues extend commissioning	Factory tested as a whole — standardized, stable, fast start-up
Cost & schedule	Longer fabrication and installation time on site	Shorter build time, less material waste, lower overall cost

Skid Structure Includes

✓Steel skid frame angle / I-beam base structure, forklift and crane movable.
✓Internal process piping welded, pressure tested in the factory.
✓Platform, handrails & ladder safe operator access for top loading.
✓All inline instruments batch controller, flow meter, control valve, static & overfill protection, loading arm.

Request a Skid Quotation

Need a Custom Loading Skid?

Every skid is built to your media, gantry and throughput requirements — share your data for a tailored proposal.
